State-Feedback Delayed Integrator Example

We will study two instances of the first-order delayed integrator where the gain has unknown sign

\[y_t = y_{t-1} + iu_{t-2} + v_{t-1},\]

where $i = \pm 1$. By storing the previous input signal, we can design state-feedback controllers. Consider the two implementations

\[\begin{aligned} x_{t+1} & = \underbrace{\begin{bmatrix} 1 & i \\ 0 & 0 \end{bmatrix}}_{A_i} x_t + \underbrace{\begin{bmatrix} 0 \\ 1 \end{bmatrix}}_{B} \\ x_{t+1} & = \underbrace{\begin{bmatrix} 1 & 1 \\ 0 & 0 \end{bmatrix}}_{A} x_t + \underbrace{\begin{bmatrix} 0 \\ i \end{bmatrix}}_{B_i} \end{aligned} \]

We will refer to these models as $A_i$ and $B_i$ respectively. In the $B_i$ model, the sign of the gain is revealed immediately upon applying the control signal, while in $A_i$ the uncertainty is revealed through the delayed effect on the first state. We will proceed to design minimax adaptive controllers with periodic switching for these two systems, and compare the gain bounds.

Prerequisites

Load the following packages

using MinimaxAdaptiveControl
using LinearAlgebra
using JuMP
using Plots
using Clarabel # Optimization solver

We are using Clarabel.jl, but any SDP solver JuMP.jl will do. See the following list.

We define an auxillary function to pass the optimizer_factory to JuMP's Model constructor. Just substitute this with whatever solver you want to use.

optimizer_factory=() -> Hypatia.Optimizer

State-feedback models

We will define $A_i$ and $B_i$ as vectors, eaching containing two SSLinMod objects.

# Define Ai system
A1 = [1. 1; 0 0]
A2 = [1. -1; 0 0]
B0 = [0 1.]'
Q = [1.0 0; 0 1.0]
R = fill(1.0,1,1)
sys1 = SSLinMod(A1, B0, Q, R)
sys2 = SSLinMod(A2, B0, Q, R)
syssAi = [sys1, sys2]

# Define Bi system
A0 = [1. 1; 0 0]
B0 = [0 1.]'
sys3 = SSLinMod(A0, B0, Q, R)
sys4 = SSLinMod(A0, -B0, Q, R)
syssBi = [sys3, sys4]

Bisection

The procedure for synthesizing controllers depends on a candidate $\ell_2$-gain level $\gamma$. In order to find the smallest $\gamma$, we will use bisection. We construct this bisection in two parts. The function attemptMACLMIs(syss, γ, T) takes a vector of systems, performs the reduction with reduceSys and attempts to solve the periodic bellman inequality LMIs with period T using MACLMIs.

function attemptMACLMIs(syss, γ, T)
    N = length(syss)
    models = [Model(optimizer_factory()) for i = 1:N]
    set_silent.(models)
    (A, B, G, Ks, Hs) = reduceSys(syss, γ, models)
    model = Model(optimizer_factory())
    set_silent(model)
    Ps0, Psplus= MACLMIs(A, B, G, Ks, Hs, T, model)
    return termination_status(model)
end

Next, we implement a bisection algorithm to find the smallest $\gamma$ for which we can solve the LMIs.

function bisect(syss, fun, T; gammamin = 1.0, gammamax = 500.0, tol = 1e-3)
    γmin = gammamin
    γmax = gammamax
    if fun(syss, gammamax, T) != MOI.OPTIMAL
        error("gammamax is not feasible")
    end
    while γmax - γmin > tol
        γ = (γmin + γmax) / 2
        if fun(syss, γ, T) == MOI.OPTIMAL
            γmax = γ
        else
            γmin = γ
        end
    end
    return γmax
end

Results

We run the bisection algorithm for the two systems with periods from $1$ to $8$, setting $\gamma = -1$ if the optimization problem is infeasible.

Tmax = 8
gammamins = zeros(Tmax, 2)
for t = 1:Tmax
    try
        gammamins[t, 1] = bisect(syssAi, attemptMACLMIs, t)
    catch
        gammamins[t, 1] = -1
    end
    try
        gammamins[t, 2] = bisect(syssBi, attemptMACLMIs, t)
    catch
        gammamins[t, 2] = -1
    end
end

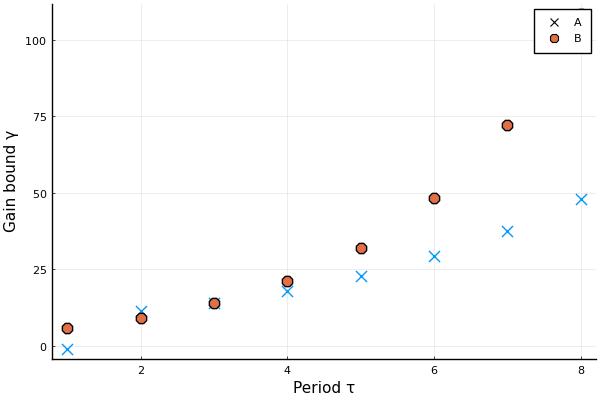

The resulting gain-bounds are

We can plot them nicely using e.g. PyPlot.

pyplot()
plot(
     gammamins,
     seriestype=:scatter,
     marker=[:x :o],
     markersize = 8,
    label = ["A" "B"],
    xlabel = "Period τ",
    ylabel = "Gain bound γ"
   )
